Bogie Type Forging Furnace

Heat Treatment Furnace

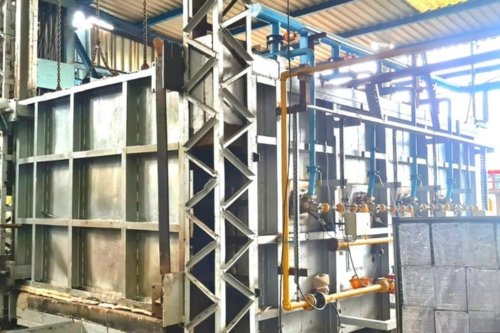

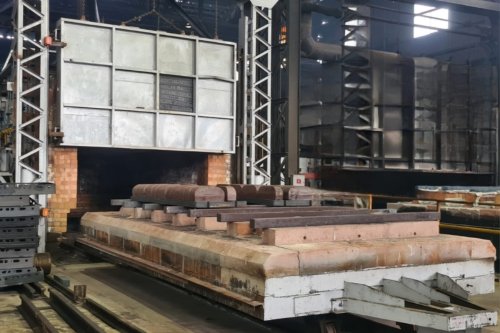

Various grades of steel in the form of forgings, castings, fabricated components, etc., can be annealed, normalized, hardened, stressed, solution-annealed, tempered, etc. using a Bogie Hearth Furnace, also called a car bottom furnace. The image displays a double-ended bogie hearth furnace with a 15-ton capacity. Two bogies are provided to save time and energy; one is kept within the furnace while the other is unloaded and reloaded for the subsequent cycle. This is a dual fuel system, meaning it uses both LPG and HSD and is controlled by a PLC and SCADA. The door and bogie are moved by electro-mechanical means.

Versatile Design

Precision Controls

Advantages

Material Handling

he bogie system allows seamless transportation of heavy components in and out of the furnace.

High Productivity

Processes large loads in a single cycle, enhancing throughput.

Quality Assurance

Uniform heating ensures consistent material properties and reduces forging defects.

Operational Flexibility

Ideal for batch and custom forging processes.

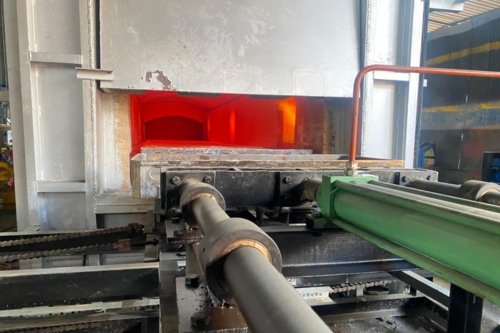

Bogie Type Forging Furnace
